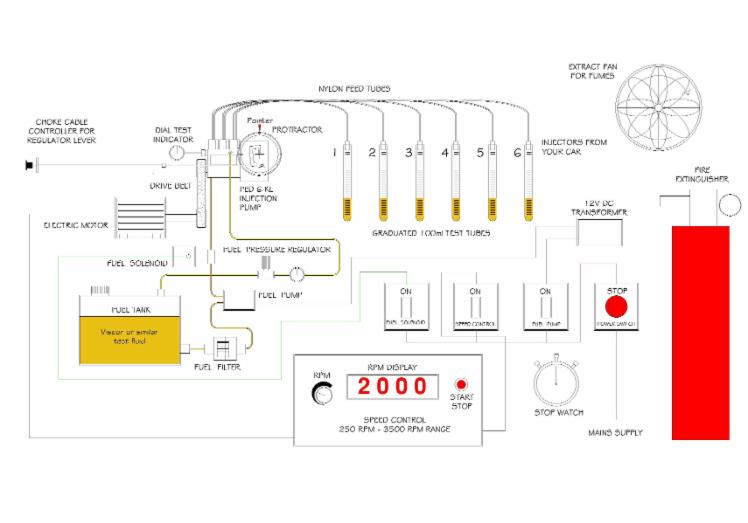

TEST RIG LAYOUT

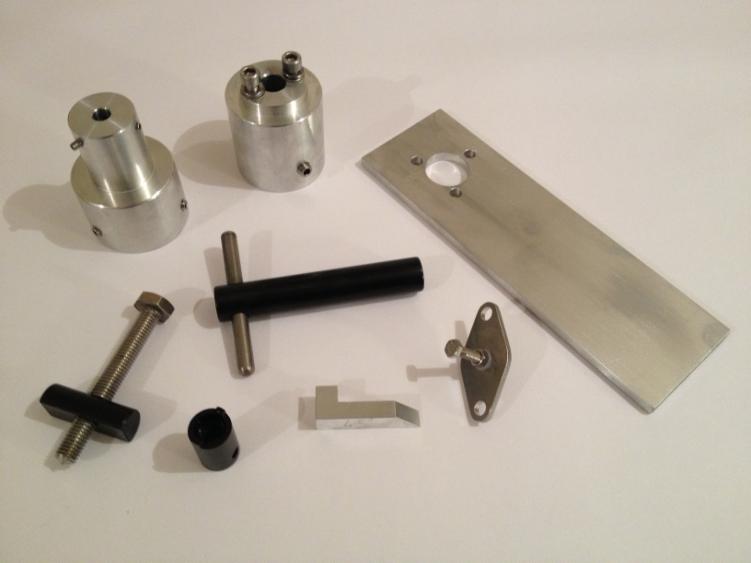

PUMP REPAIR TOOLS FROM THE BOOK

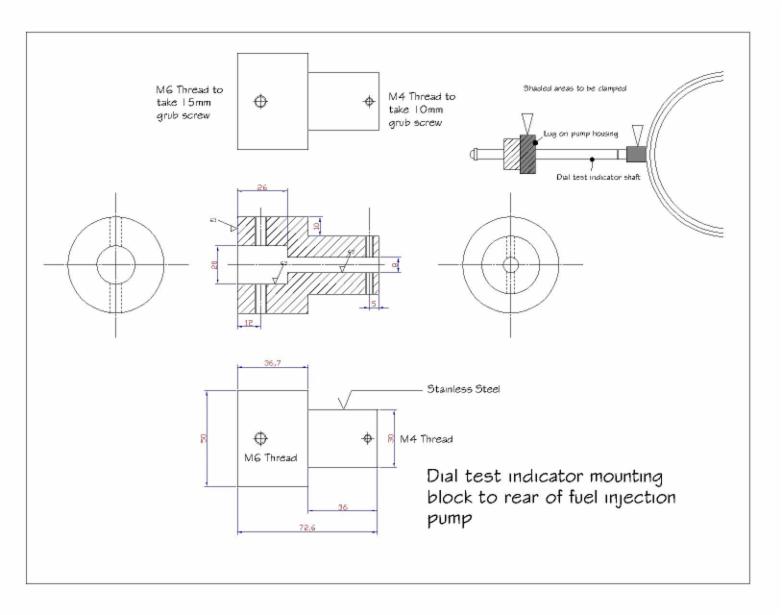

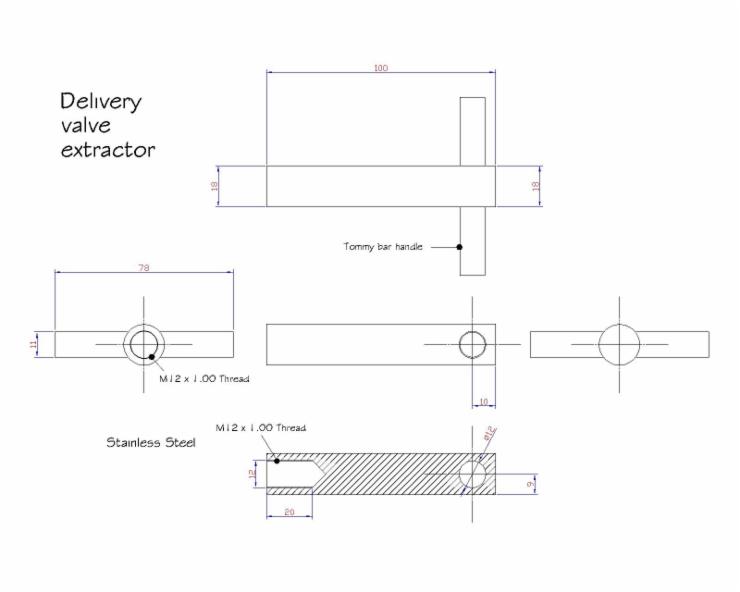

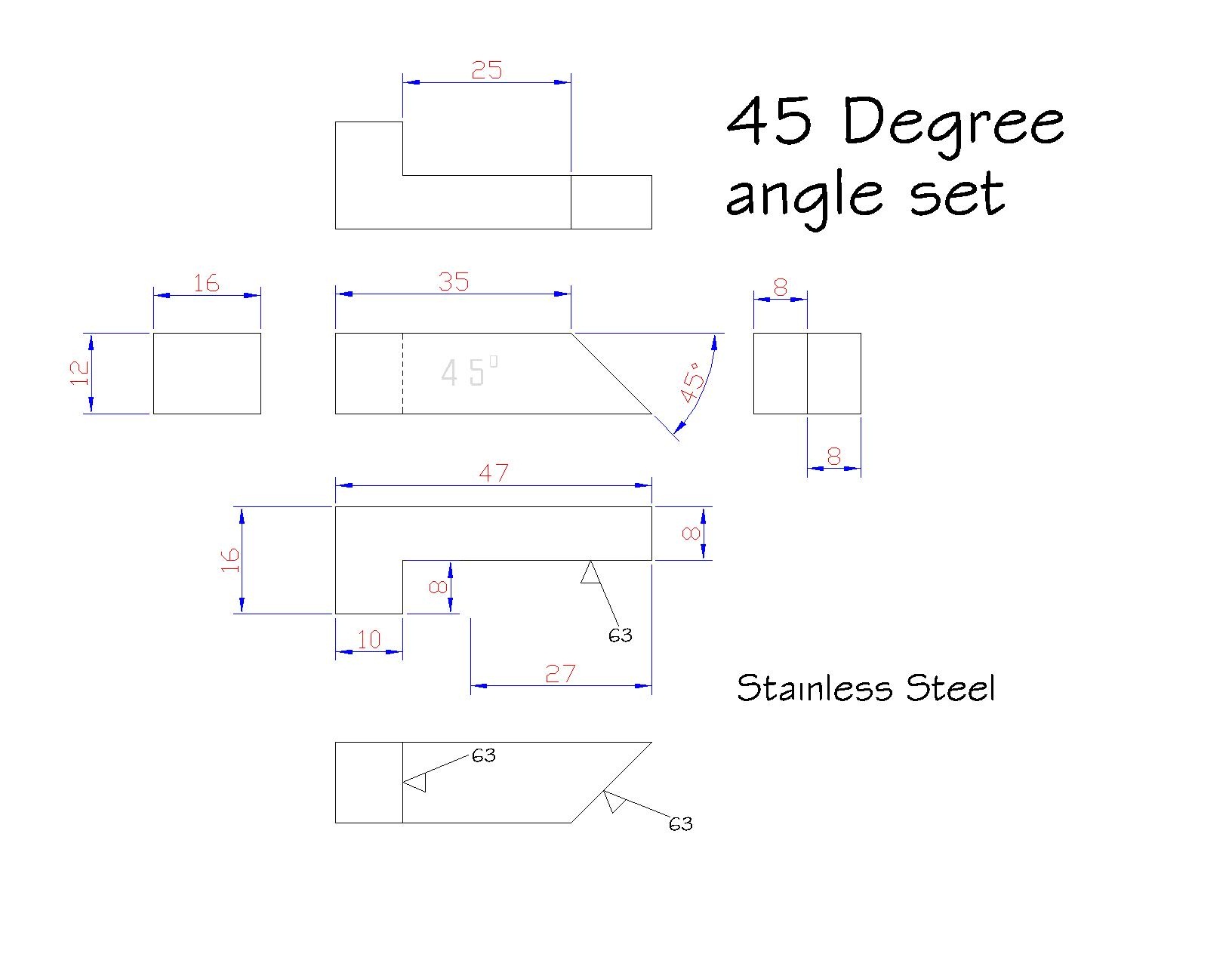

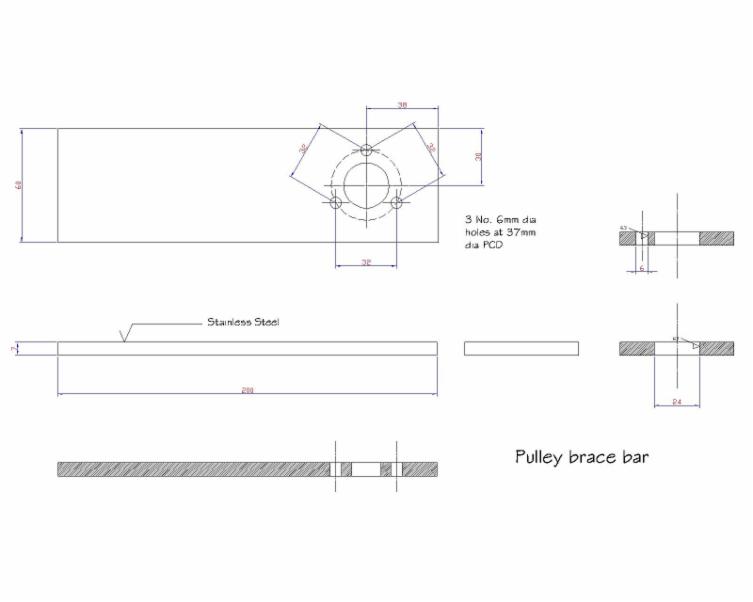

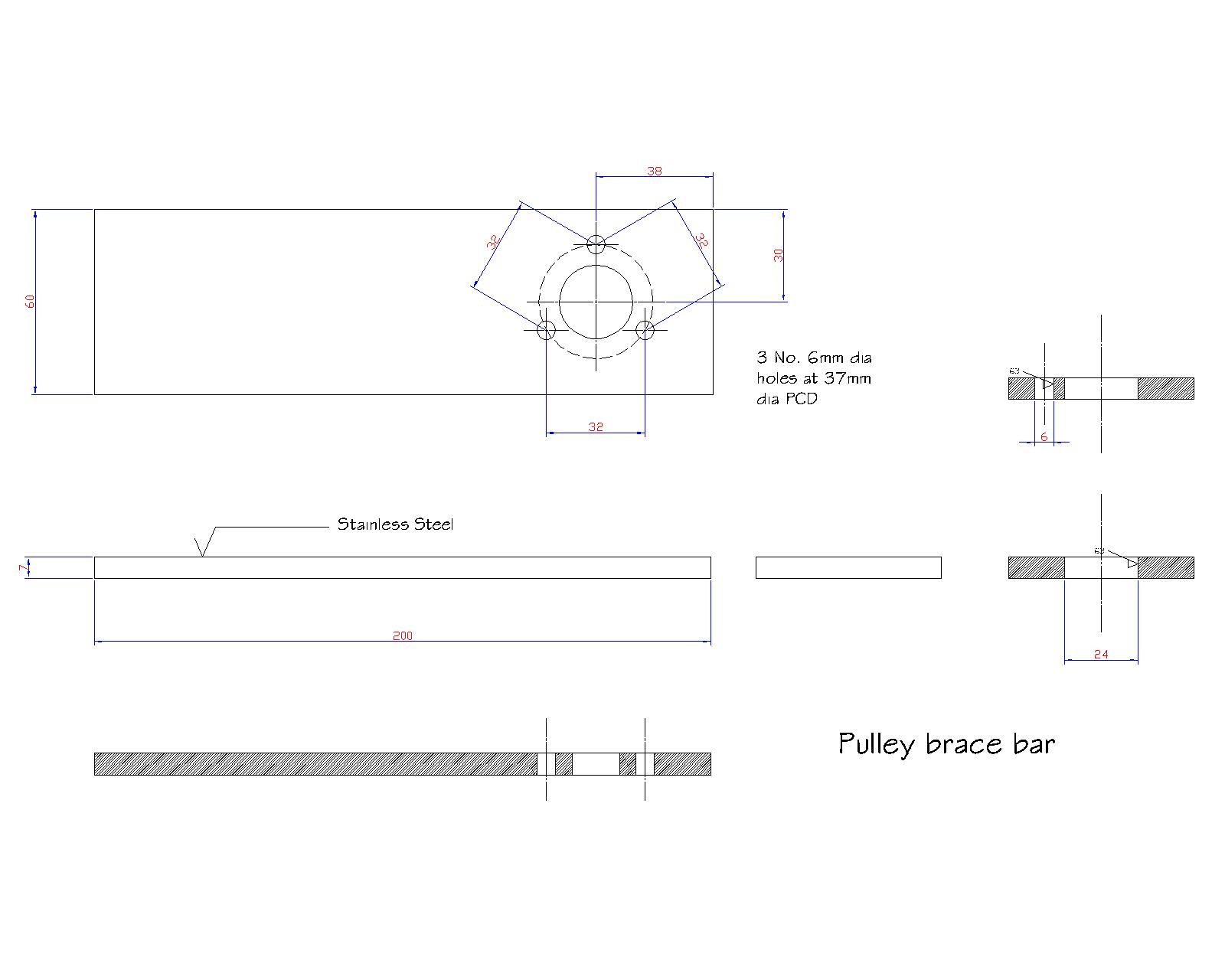

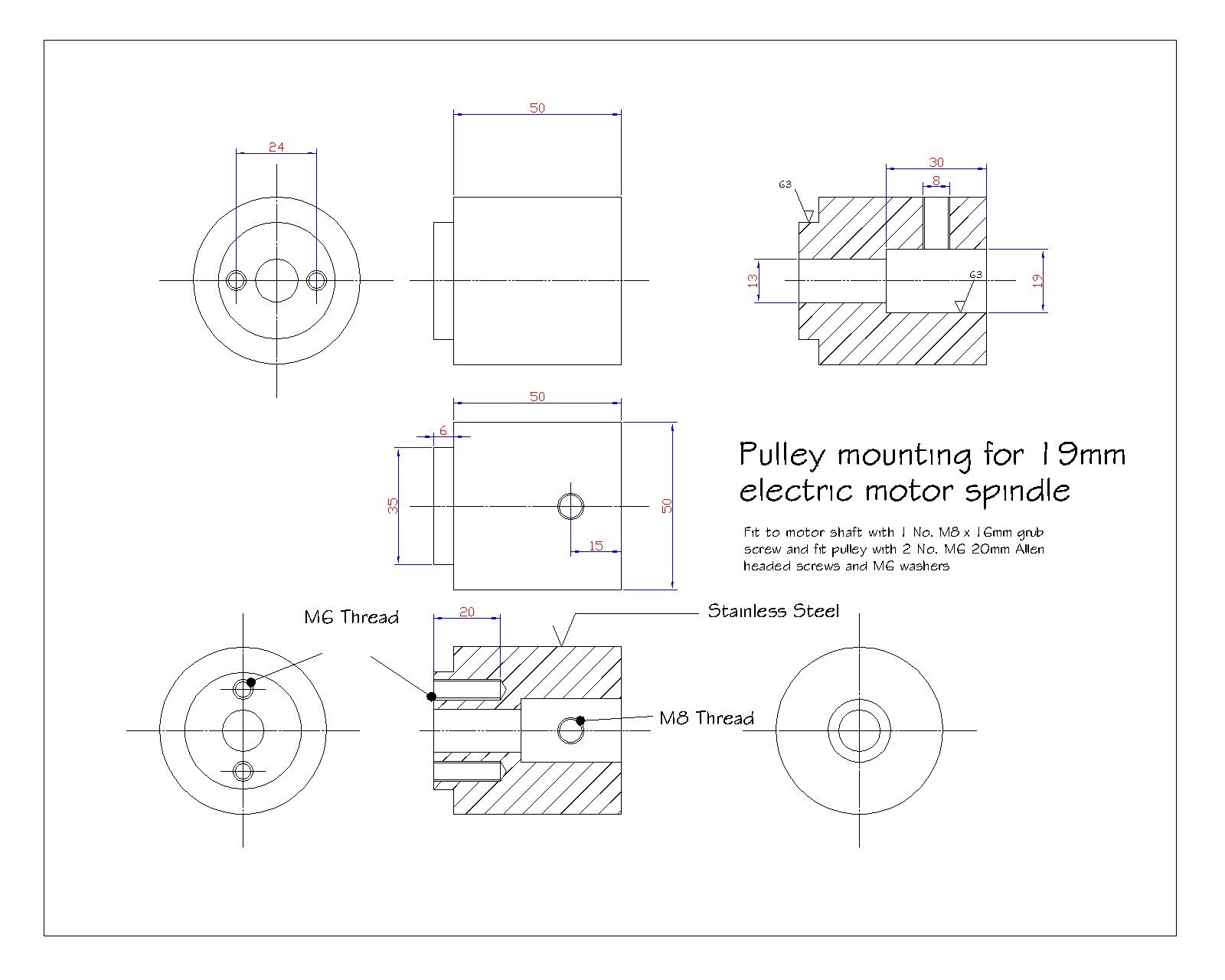

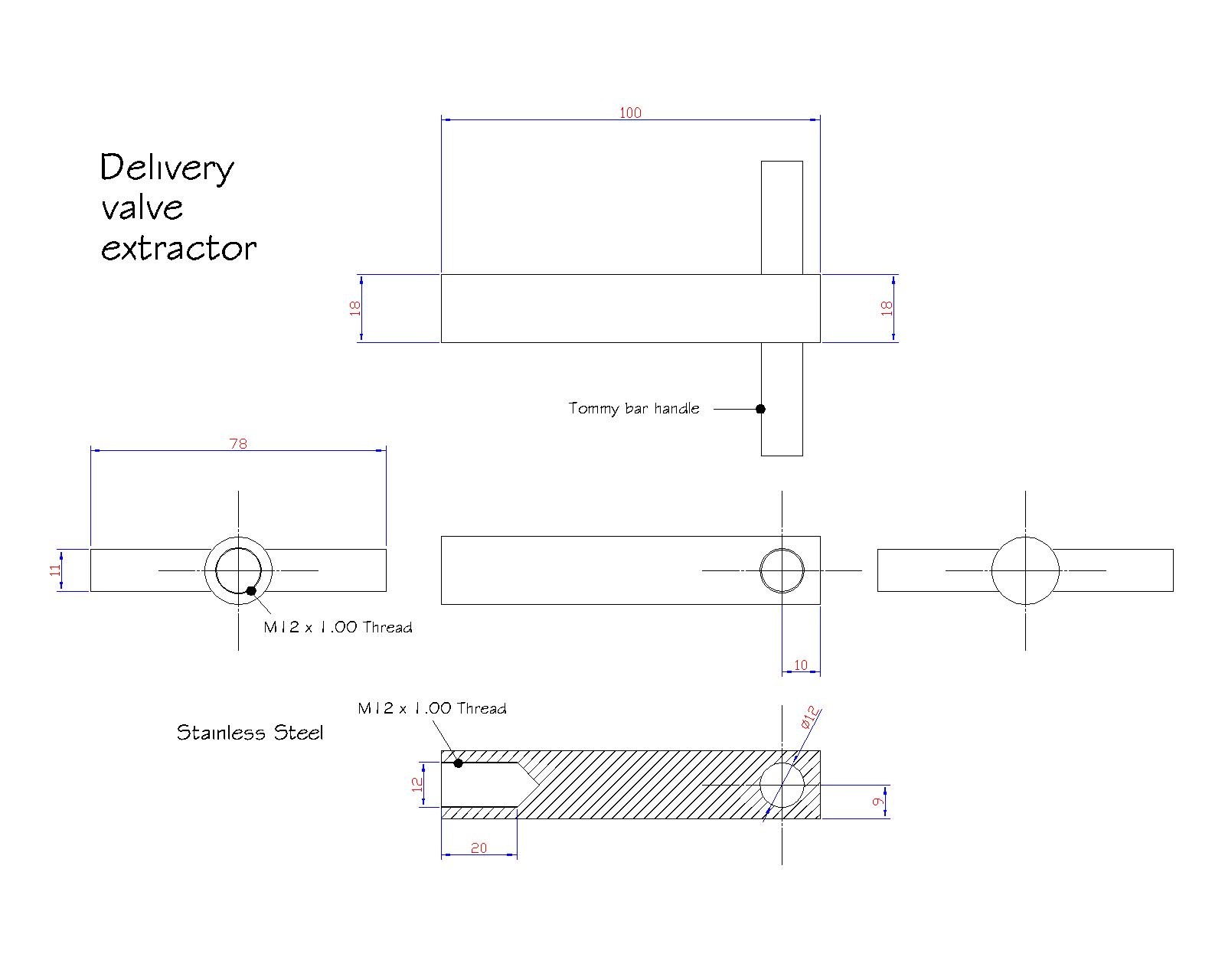

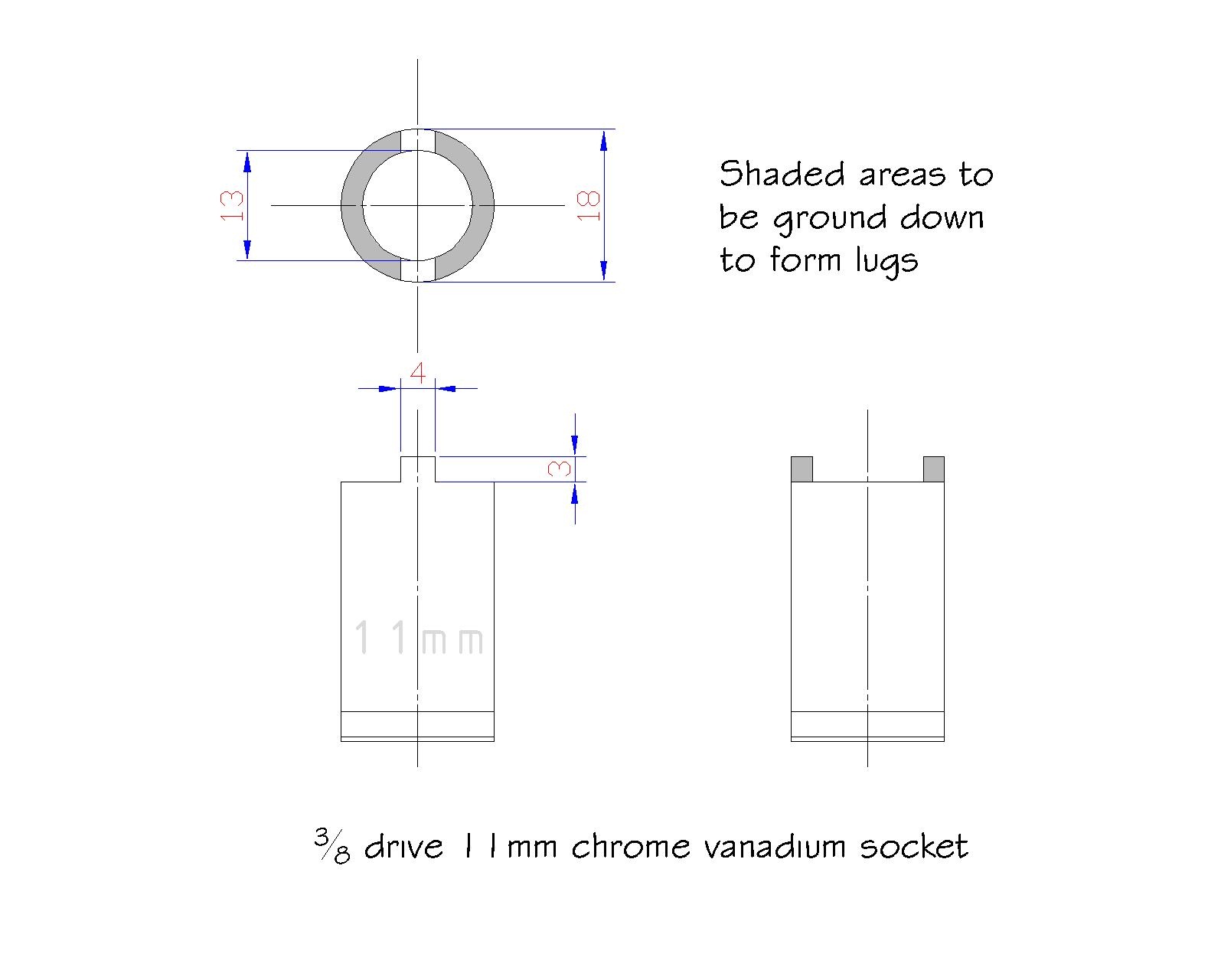

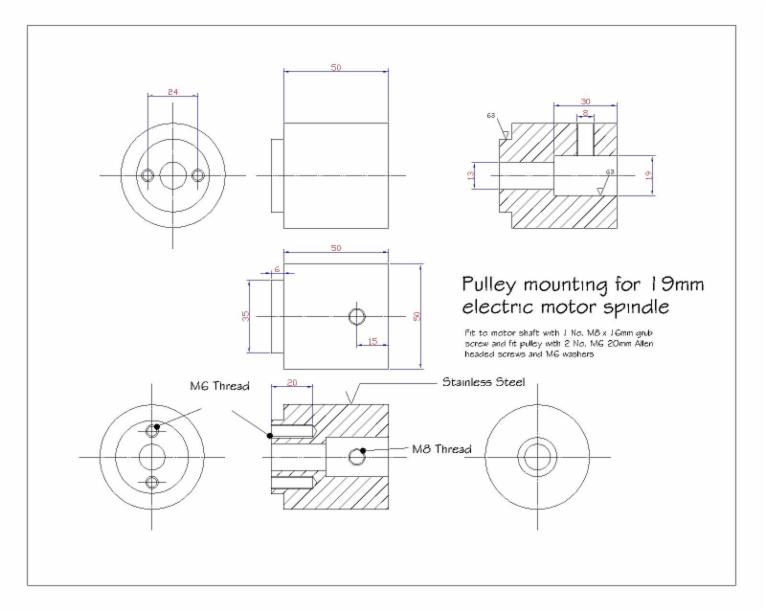

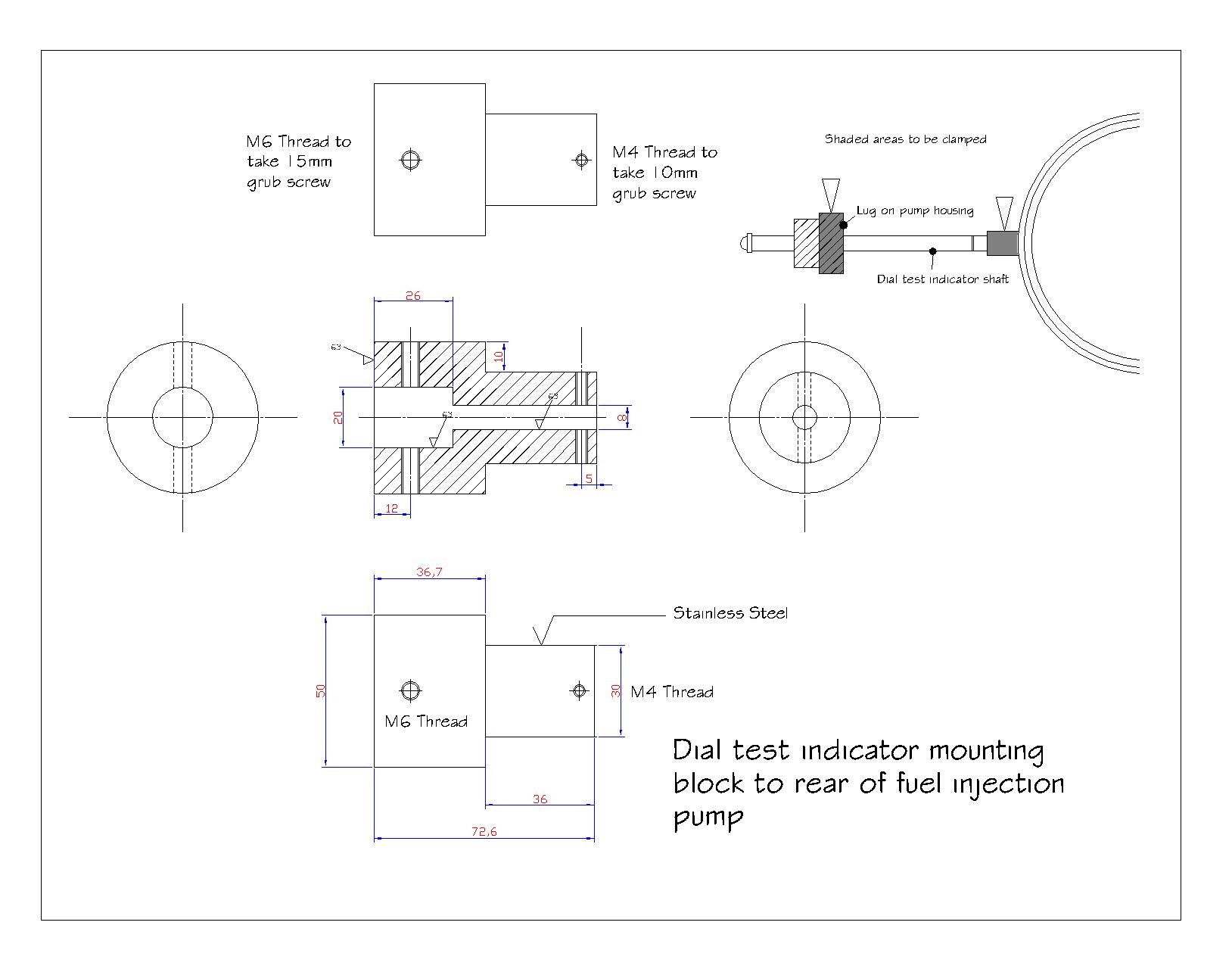

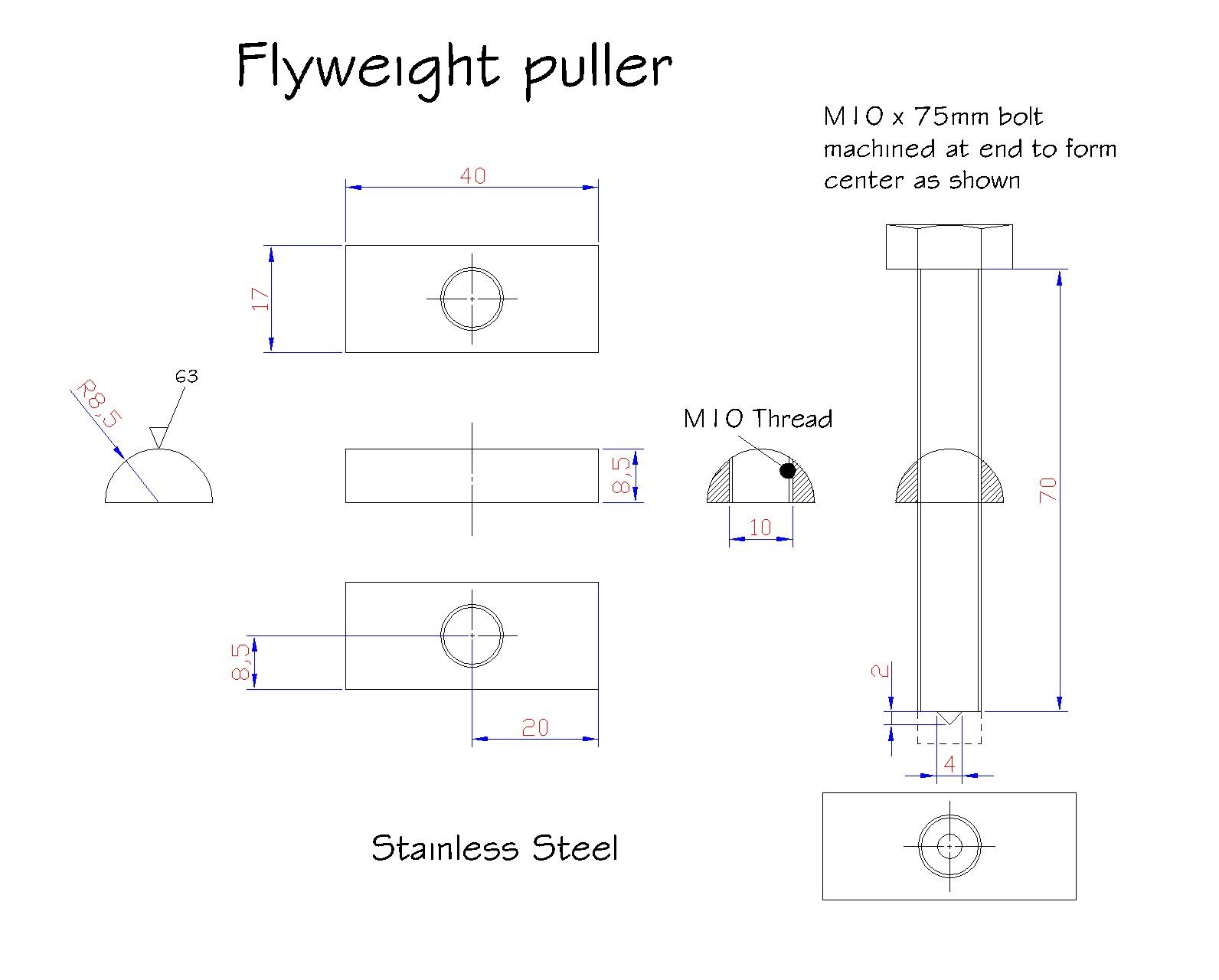

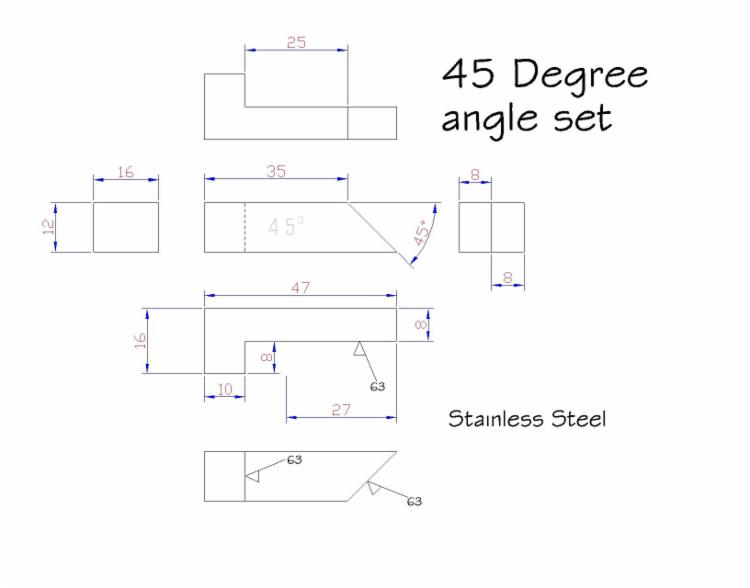

Below are some of the tool fabrication drawings which appear in the book, available to download free. Please feel free to print these off to use in your workshop or give to your machinist for fabrication.

Click on the picture and you will either be prompted to save the picture by your internet browser or the picture will open. If the picture opens up then right click and select save picture as...

.

OTHER USEFUL DRAWINGS

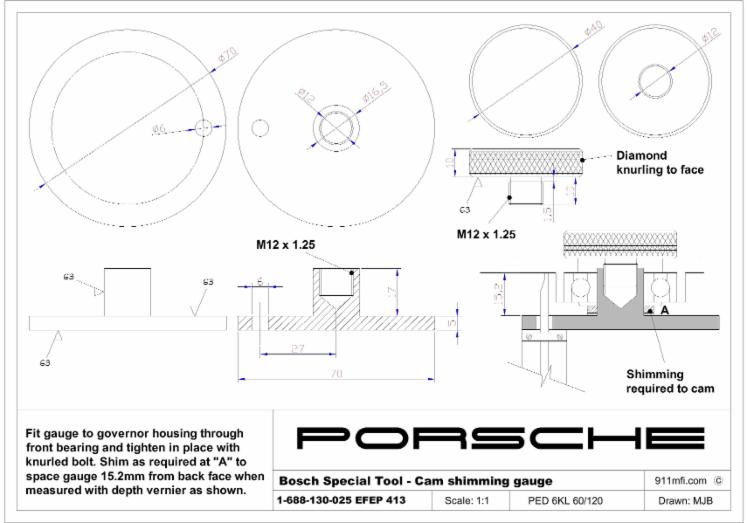

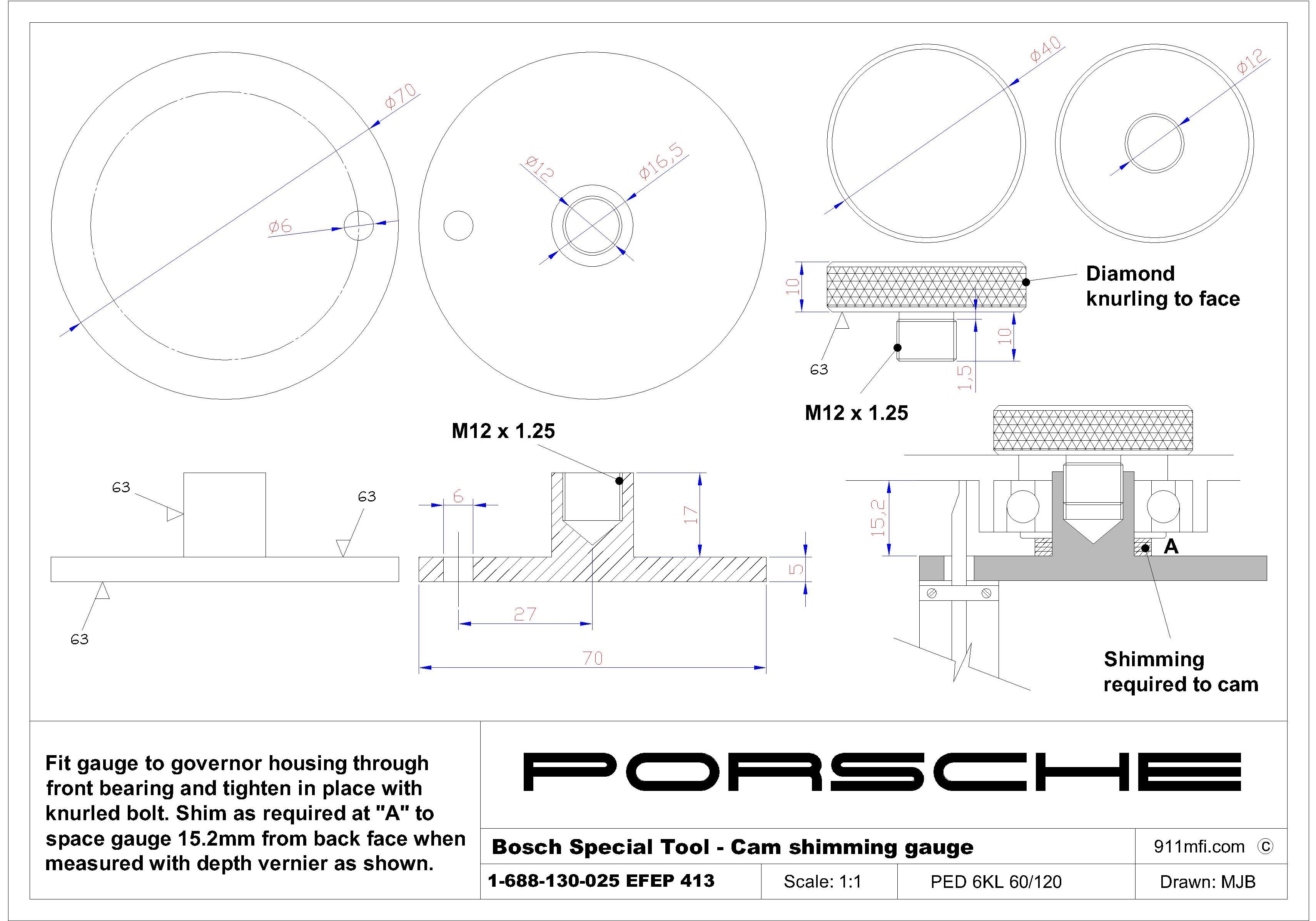

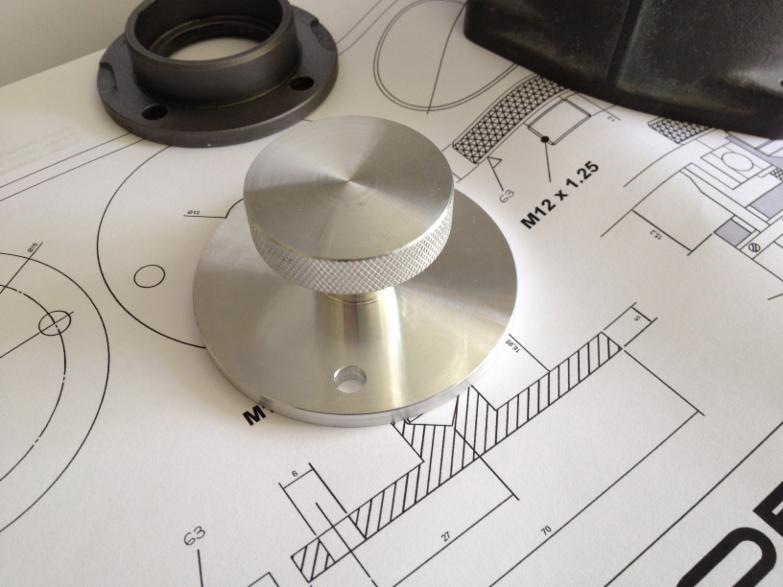

Drawing for making the Bosch Tool used for setting the shimming to the cam. Used if the shims have been lost or mixed up or if you are building one good pump out of parts. Click on drawing to open for printing.
